Joyang powder packing machine is an automated or semi-automated machine, packs powder into predetermined packaging bags accurately, efficiently and hygienically.
it is widely used in food industry, pharmaceuticals industry, chemicals industry, and agricultural products industry, such as spices powder, nutritional powders, milk powder, protein powder, coffee powder, additives, pharmaceutical powders, chemical powders, etc.

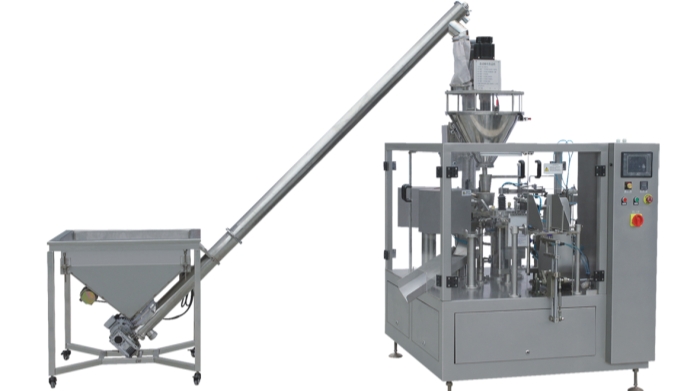

The powder packaging equipment uses a spiral feeding system, controlled by a PLC control system, servo power system, and touch screen human-machine interface.
It automatically completes the entire process, including feeding, metering, bagging, filling, sealing, date printing, cutting, and finished product conveying.
|
Model |
JY-500 |
JY-420 |
JY-520 |
JY-720 |
|
Length of bag |
50-170mm |
50-300mm |
80-350mm |
100-450mm |
|
Width of bag |
40-110mm |
60-200mm |
60-250mm |
150-350mm |
|
Speed |
30-50bag/min |
30-60bag/min |
30-60bag/min |
10-30bag/min |
|
Power |
2.5kw/220V |
3.0kw/220V |
3.5kw/220V |
4.0kw/220V |
|
Size |
1x0.8x1.9m |
3.5x2x3.7m |
3.5x2x3.9m |
3.5x2x4.1m |
